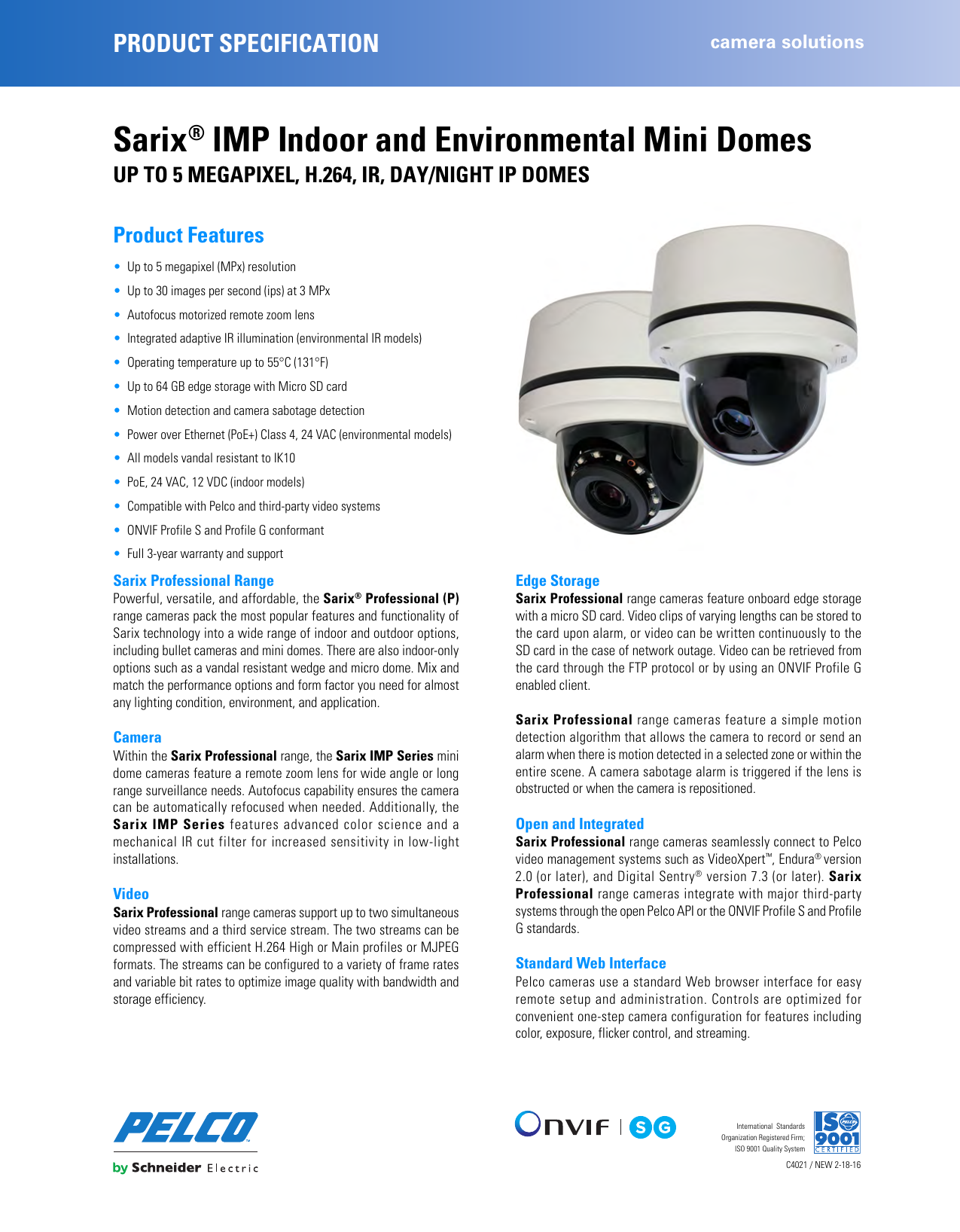

Mix and match the performance options and form factor you need for almost any lighting condition, environment, and application. Camera Within the Sarix Professional range, the Sarix IMP Series mini dome cameras feature a remote zoom lens for wide angle or long range surveillance needs.
Autofocus capability ensures the camera can be automatically refocused when needed. The conduit hole designed for side conduit cabling. Connect the RJ connector to this port with a PoE Class 2 compatible network device that supplied power through the Ethernet cable.
Pelco Schneider Electric IMP321-1IS Srx Pro2 Ind Dome Poe24V12V 3M
Installation and Connection 2. In addition to this manual, the items below are included in the product box: Wall mount bracket for micro indoor dome models 2. A drill Screwdrivers Wire cutters Checking Appearance Although the protective materials used for the packaging should be able to protect the unit from most accidents during transportation, check the unit and its accessories for any visible damage.
Remove the protective film to check items Pelco Sarix Pro IMP321-1IS IP Camera accordance with the list in 2.
Loosen the 3 camera top cover screws. Gently pull the top cover downward to take it apart from the camera body. Further loosen the 3 camera lens base screws. Connect the power cable to the power port via one of the following 3 alternatives. Connect a power cable that supplies AC24V power source to the power terminal. Connect a power cable that supplies DC12V power source to the power terminal.
Connect an Ethernet cable terminated with RJ connector to the PoE RJ port for both power supply and network connectivity purposes simultaneously. Lift to open the inner liner Loosen another 3 screws of camera lens base via torx wrench supplied Remove the lens base from theback box.
Attach the mounting template on a desired mounting surface normally for in-ceiling. Drill a round hole mm based on the template on the surface to have the camera embedded within the hole later. Place the supplied mounting template on a mounting surface. Drill 6 mm 0.
Then insert 4 or 2 supplied plastic anchors into the holes. If you want to feed wiring from the hole on the top of the back box, create a circular opening corresponding to the Bottom conduit hole of mounting template on the mounting surface.
If feeding wiring from the side of the back box, you don t need to drill a hole on the mounting surface. The Side conduit hole indication on the mounting template is for user to identify while mounting.
Mounting Schemes Method 1: Flush Mount requires In-Ceiling mounting accessory 1. Embed the in-ceiling mount bracket into the hole that was drilled based on the mounting template.
Article # The Exchange Knowledgebase
Use a cross screw driver to turn the 2 bracket screws clockwise to extend the locking arms and tighten them securely to compress the locking arms so that the bracket can be fixed within the in-ceiling area firmly. Based on your needs, use the bottom conduit hole or side conduit hole on the back box for cable entry and connect the required cables. Please properly lock the conduit hole plug on the unused hole.
For example, lock the side conduit hole with the Pelco Sarix Pro IMP321-1IS IP Camera while using the bottom conduit hole for cable entry and vice versa. Fix the back box onto the in-ceiling bracket by fastening the 4 screws followed by aligning the identifying red dots of back box and lens base to properly assemble them together with securing the 3 lens base screws.
After adjusting focus position to the satisfied field of view, mount the top cover on the lens base, both of which have a red dot respectively also for aligning identification and tighten the 3 top cover screws firmly. Attach the 2 spring hooks flanked the protective cover to the in-ceiling bracket for mounting completion. Fix back box onto the in-ceiling bracket by securing the 4 screws.
Assemble lens base with lower case and fasten the 3 torx screws.
